Teardrop Trailer

Teardrop: Insulation

Seaghan

So, although I have the wiring roughed in, the next step is to put backing plates in for every element so that it’s not screwed into thin aluminium or insulation.

The insulation I’m using is 3/4″ foam boards, cut to fit and glued in with PL300 Foam Adhesive. Sadly it takes 24 hours to cure, and I only have enough clamps for one or two boards at a time. So, I make sure that the insulation is in where the backing plates are going first so I can continue with the wiring while the insulation glue is curing.

The insulation itself has two sides… one with aluminium foil, and the other with a thin plastic film. The idea is that the aluminium goes closest to the surface where you want to retain the heat.

Since these ribs are 1-1/2″ deep, I’ll be using two layers of foam. The first will go with the aluminium facing the living compartment, and the second will go facing out.

Starting to cut the insulation for the walls, using the template created last year.

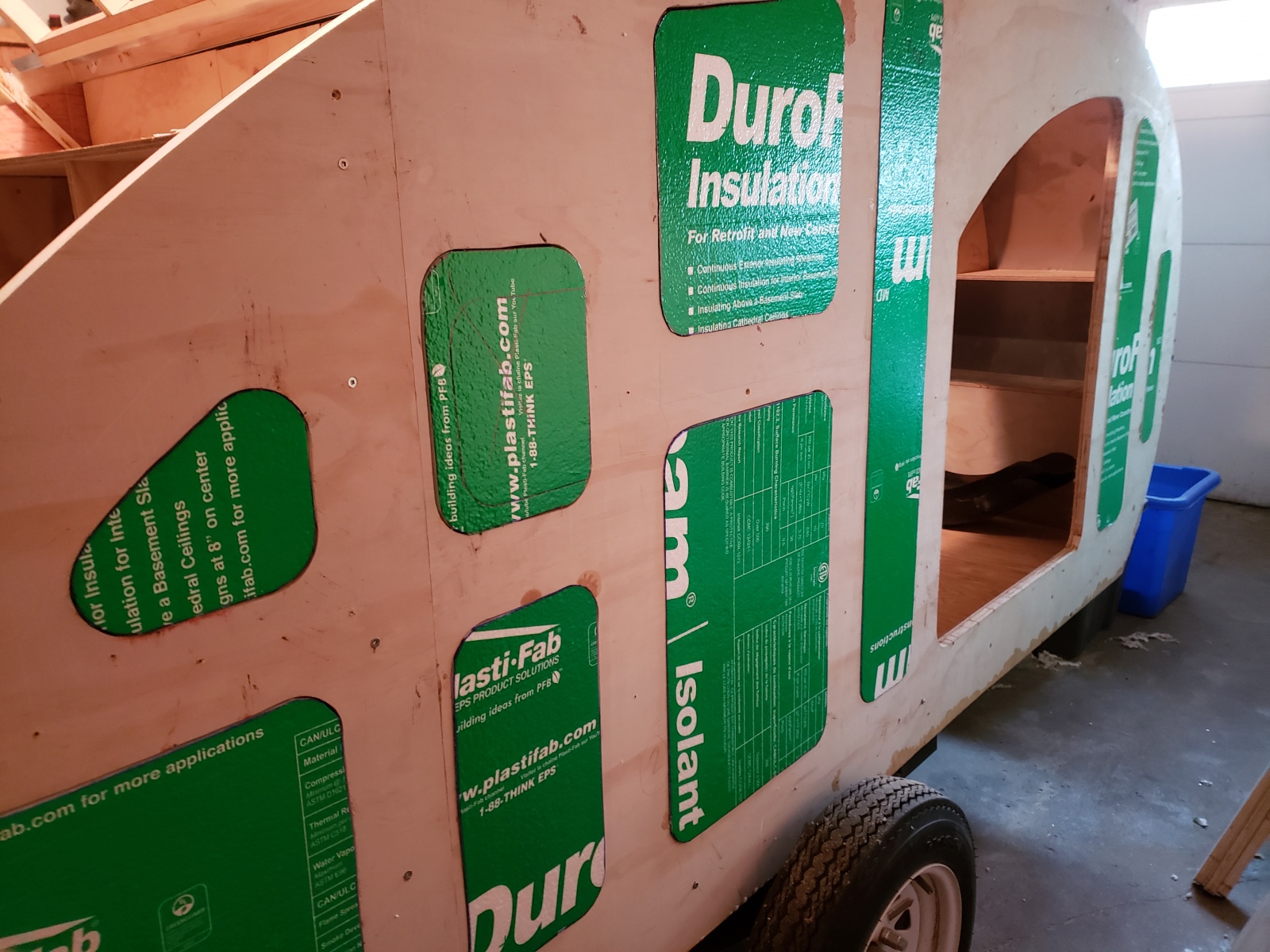

All of one side done here.
It takes a LOT of clamps to hold that insulation to the curve, therefore, I have to go a little at a time.

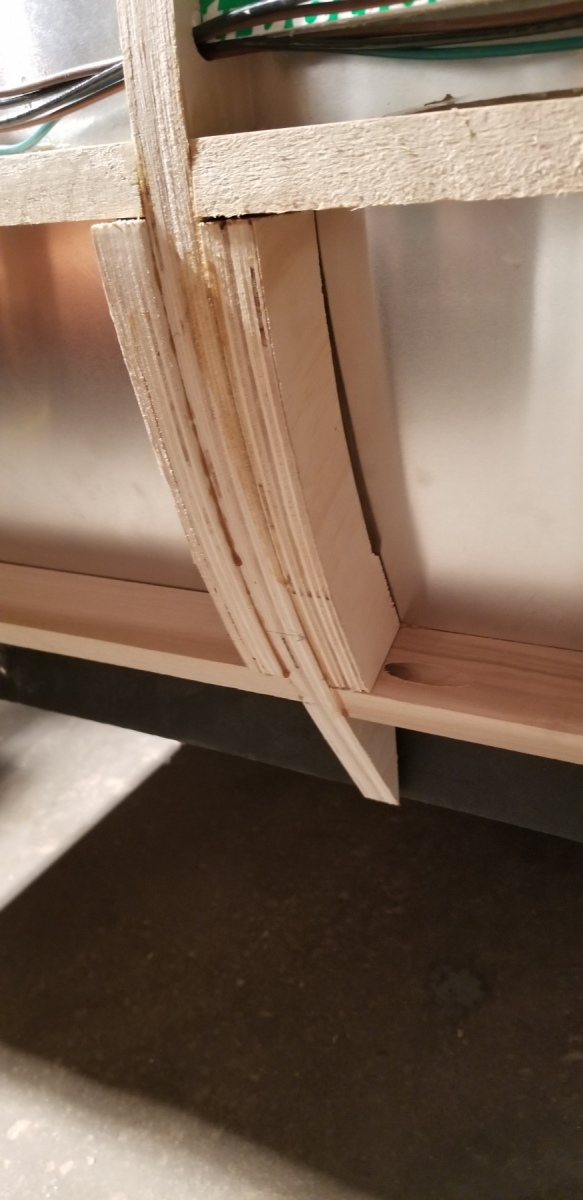

I was also adding the backing places and spacers for elements that needed to be added and then the instulation cut smaller or to fit. These are the spacers for the hatch handle.
Clamps removed, I can use them elsewhere.

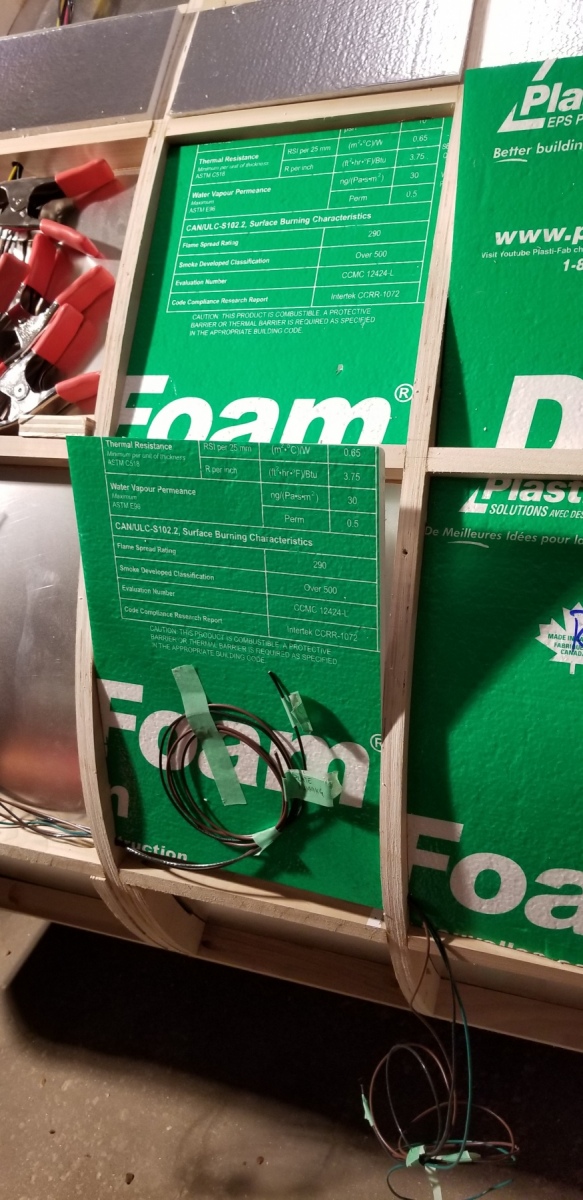

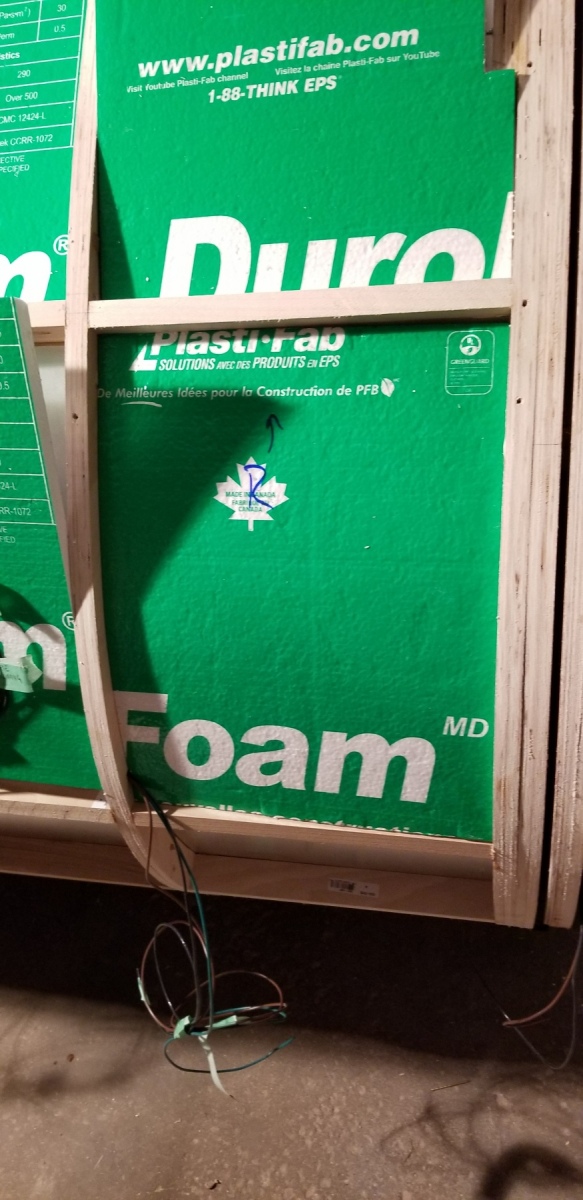

Ensuring the insulation fits

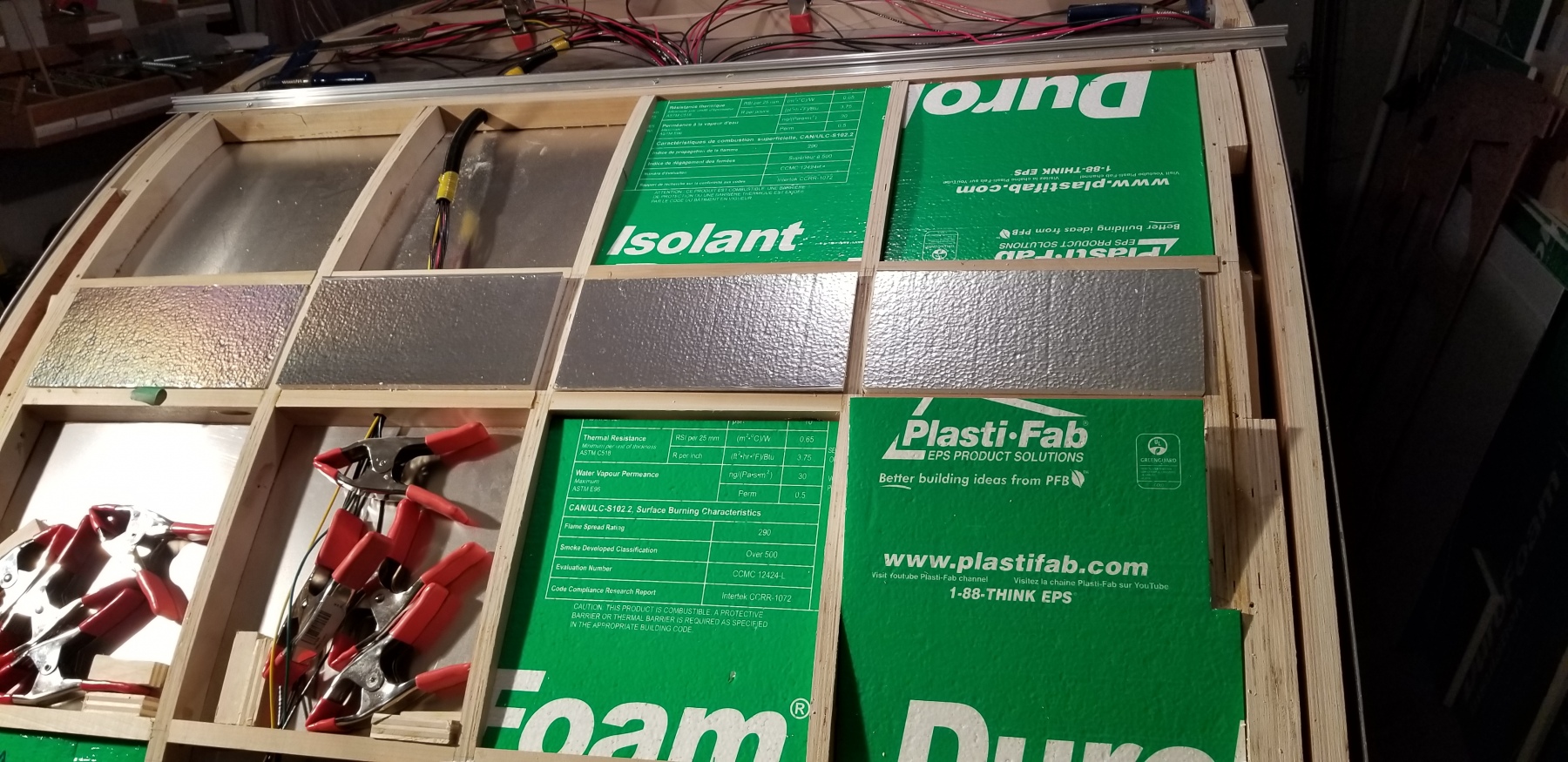

The second, thinner row, has the backing places already in place for the galley lights. The silver is facing out here.

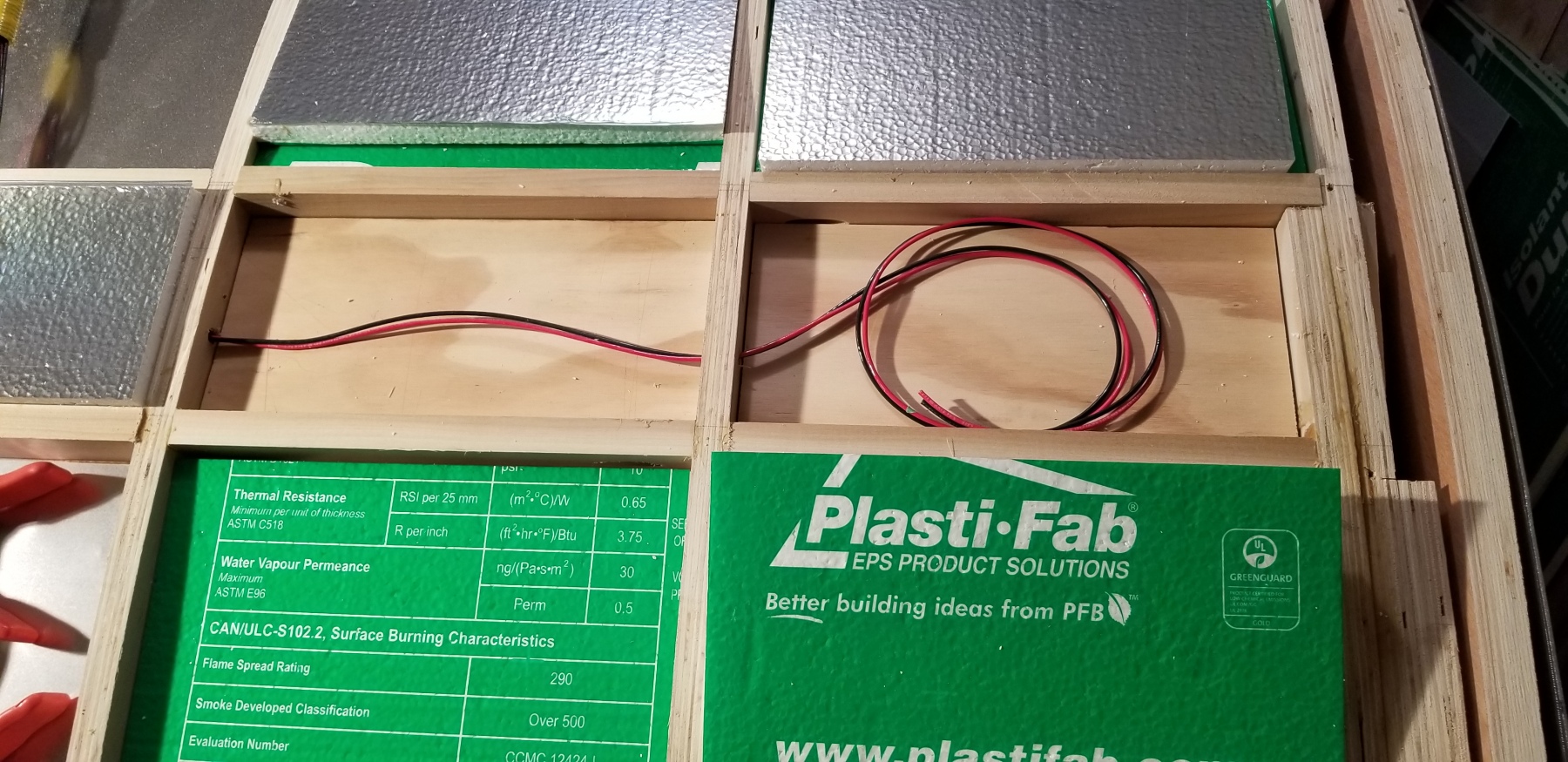

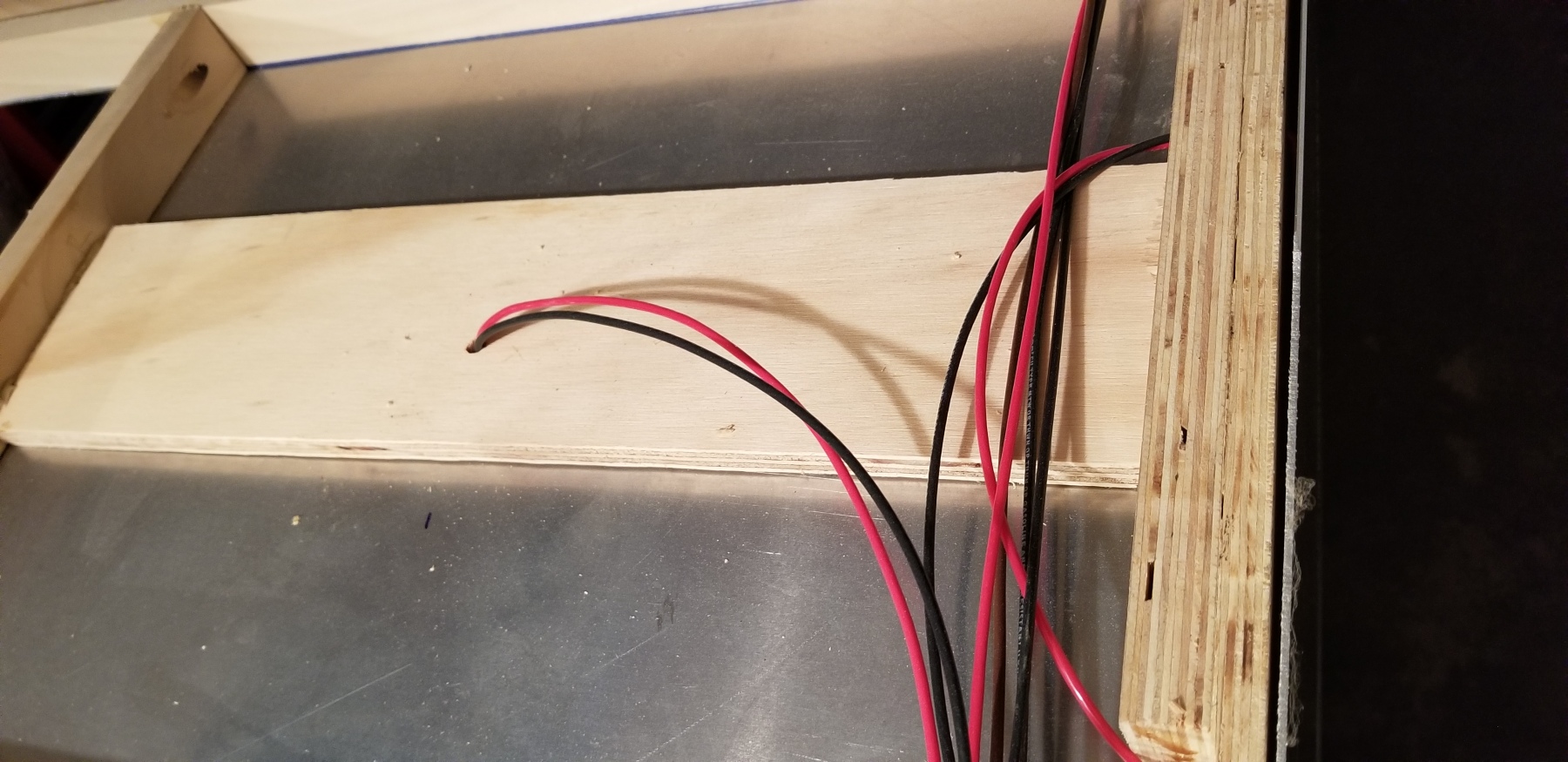

The backing plate below the thinner strip from the preceding photo.
backing plate in the ceiling, sleeping area for the dome lights.

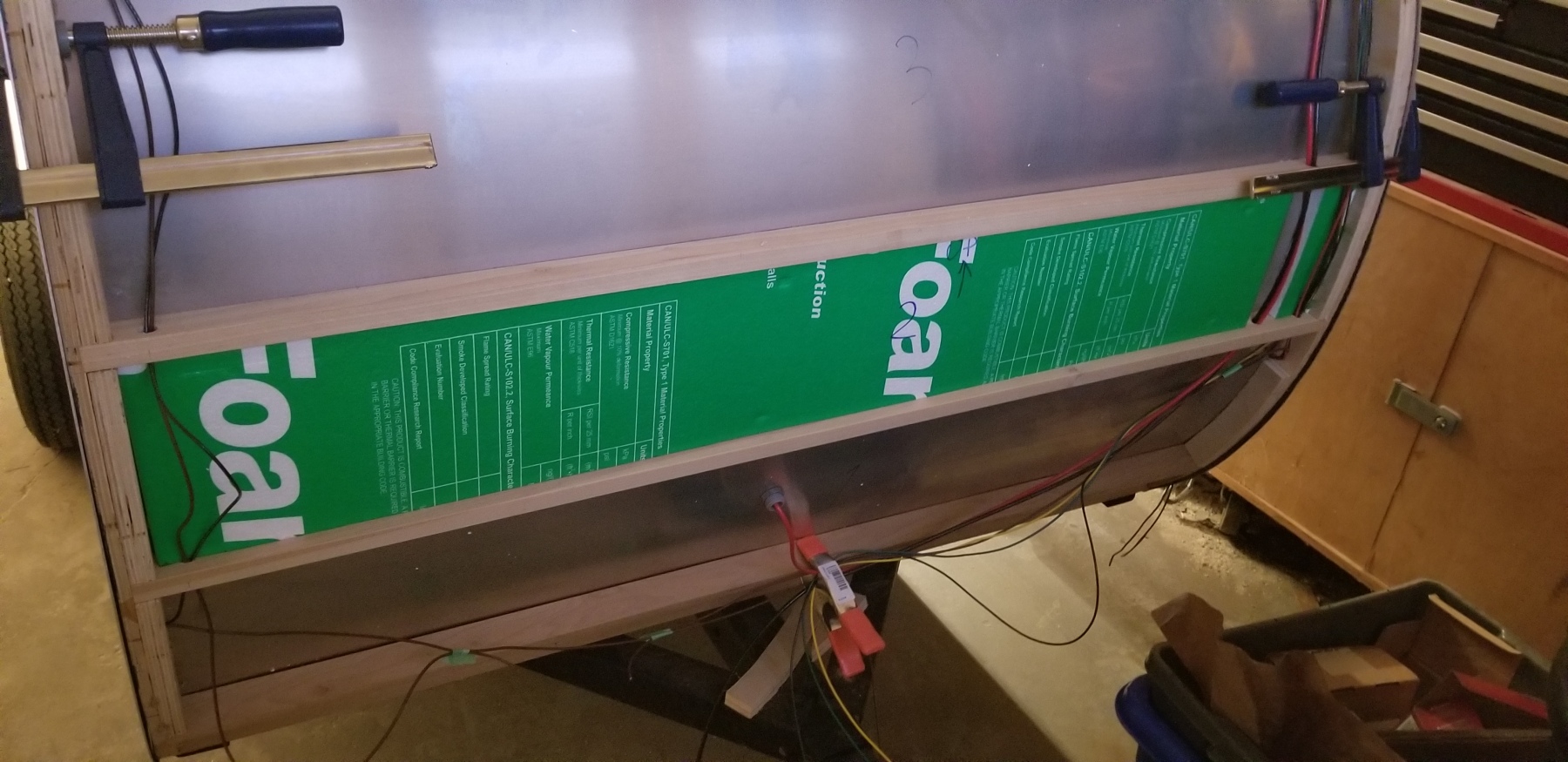

One slice glued... I can move on to the next. With a 24 hour curing time, this is going to be slow going.

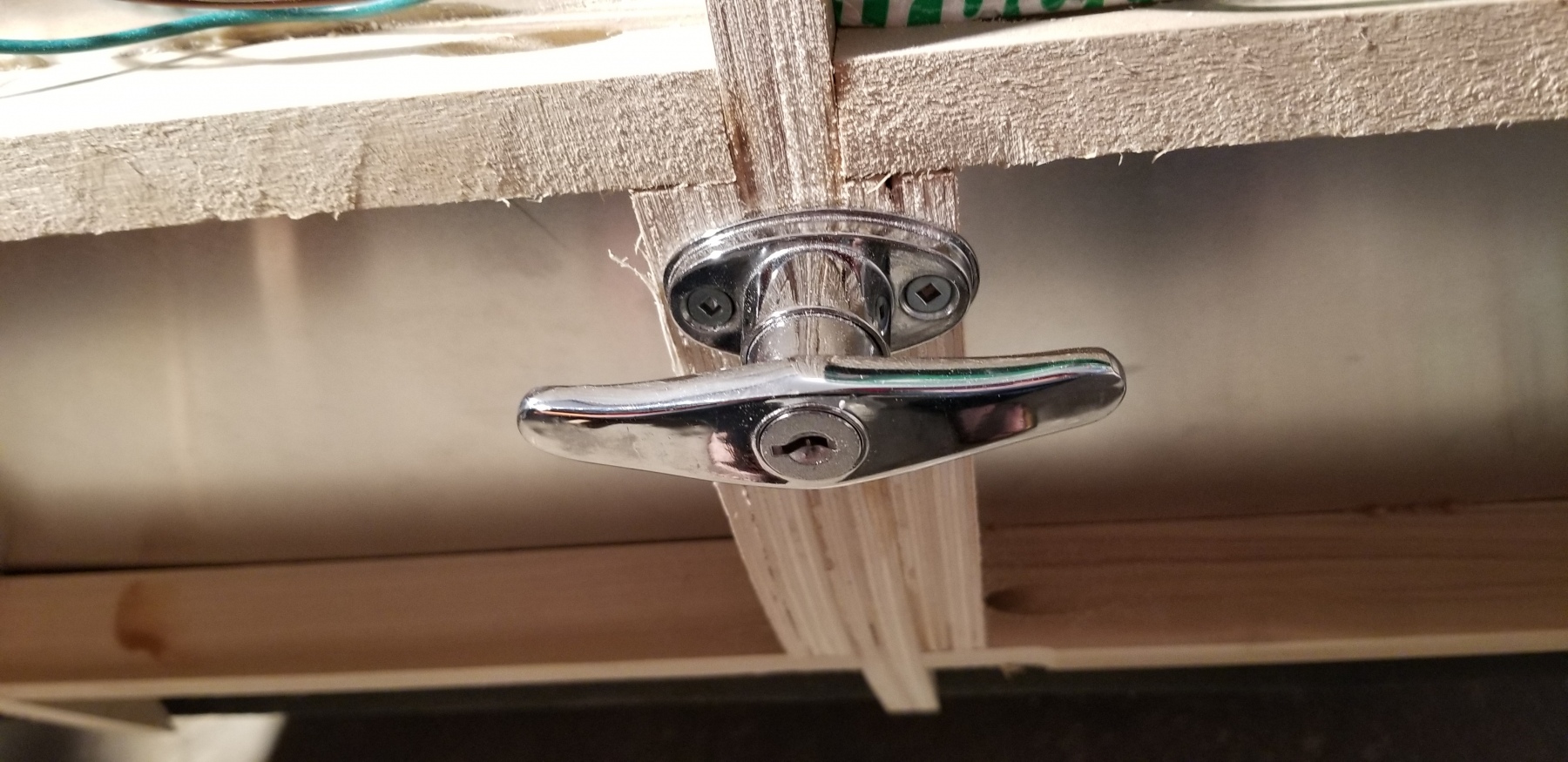

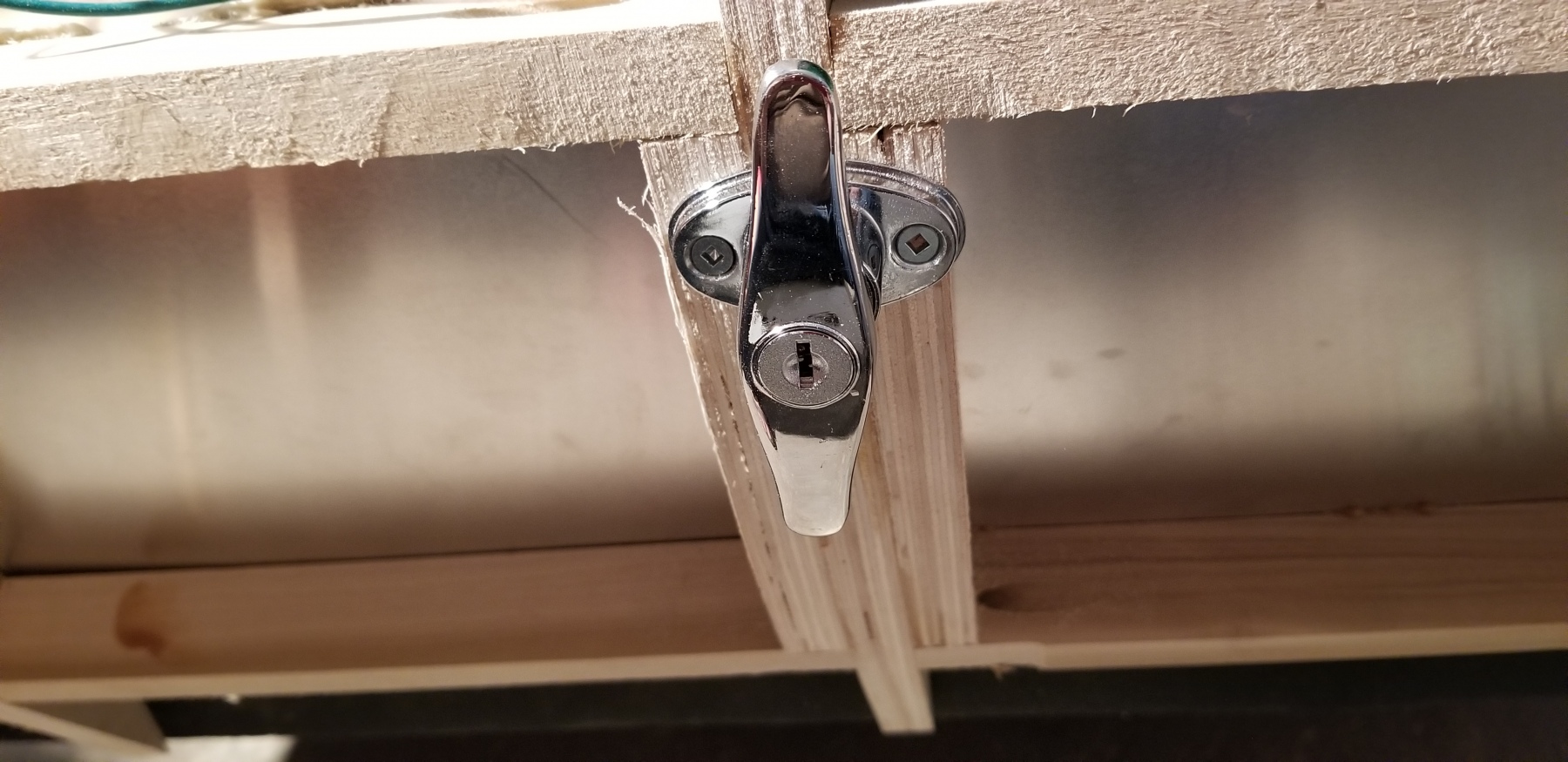

The galley handle in place, closed and locked position.
The galley handle in place, open and unlocked position.
